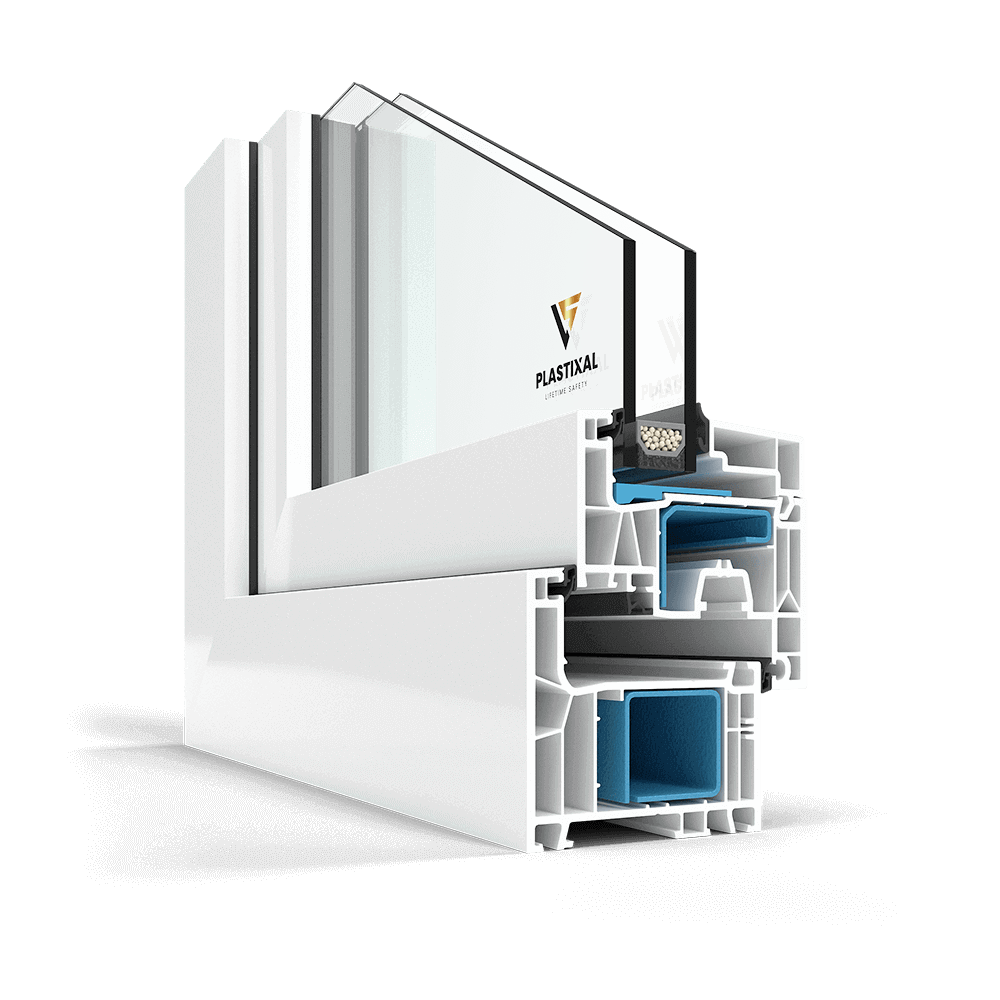

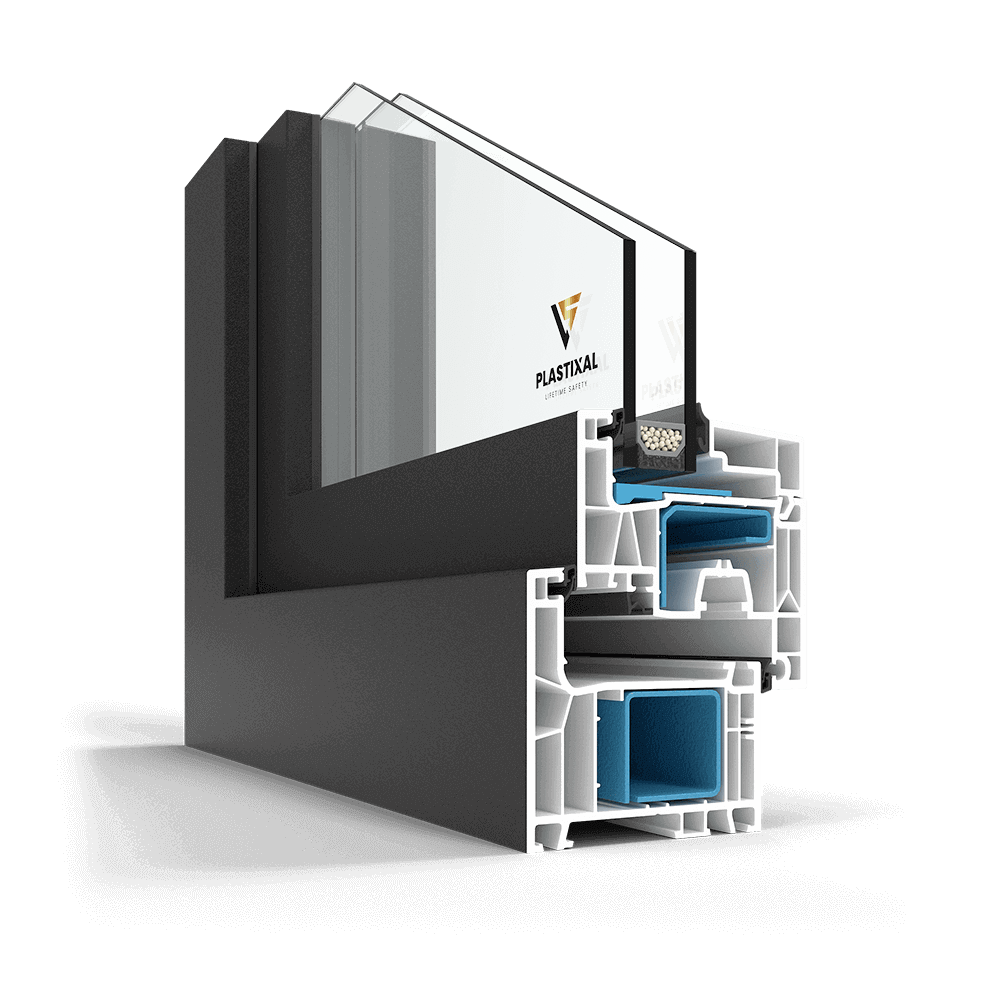

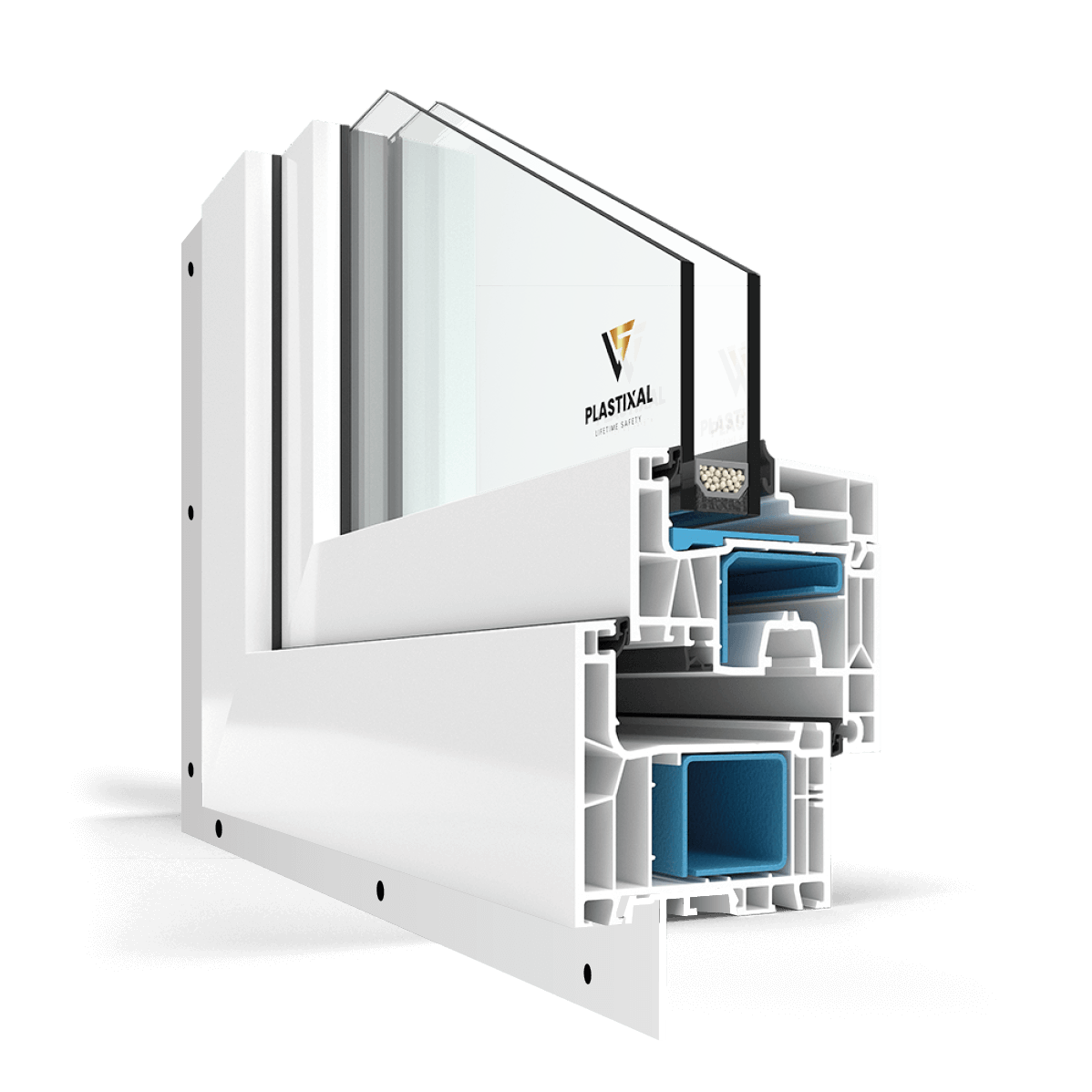

Neo 2.0
New Construction/Replacement
Parameters
Installation depth: 4 1/16 inches
Maximum glazing depth: 2 5/8 inches
Number of gaskets: 2
Number of chambers: 5–6
U-factor value starting from: 0.17 Btu/h·ft²·°F
Available core colors: White, Brown, Anthracite
Type of profile reinforcement: Steel
Additional features include:
A total width of only 16 4/7 inches, resulting in an even lighter construction,
A triple sealing system,
Recommended finishes: woodec and aludec,
Decorative surfaces,
Standard security-enhanced window,
Countless configuration variations.
The NEO model with nail flange is specifically designed for **new construction applications**, ensuring a smooth and efficient installation every time. Carefully engineered with precision, it provides a seamless fit and trouble-free setup**, making it an ideal choice for modern building projects.

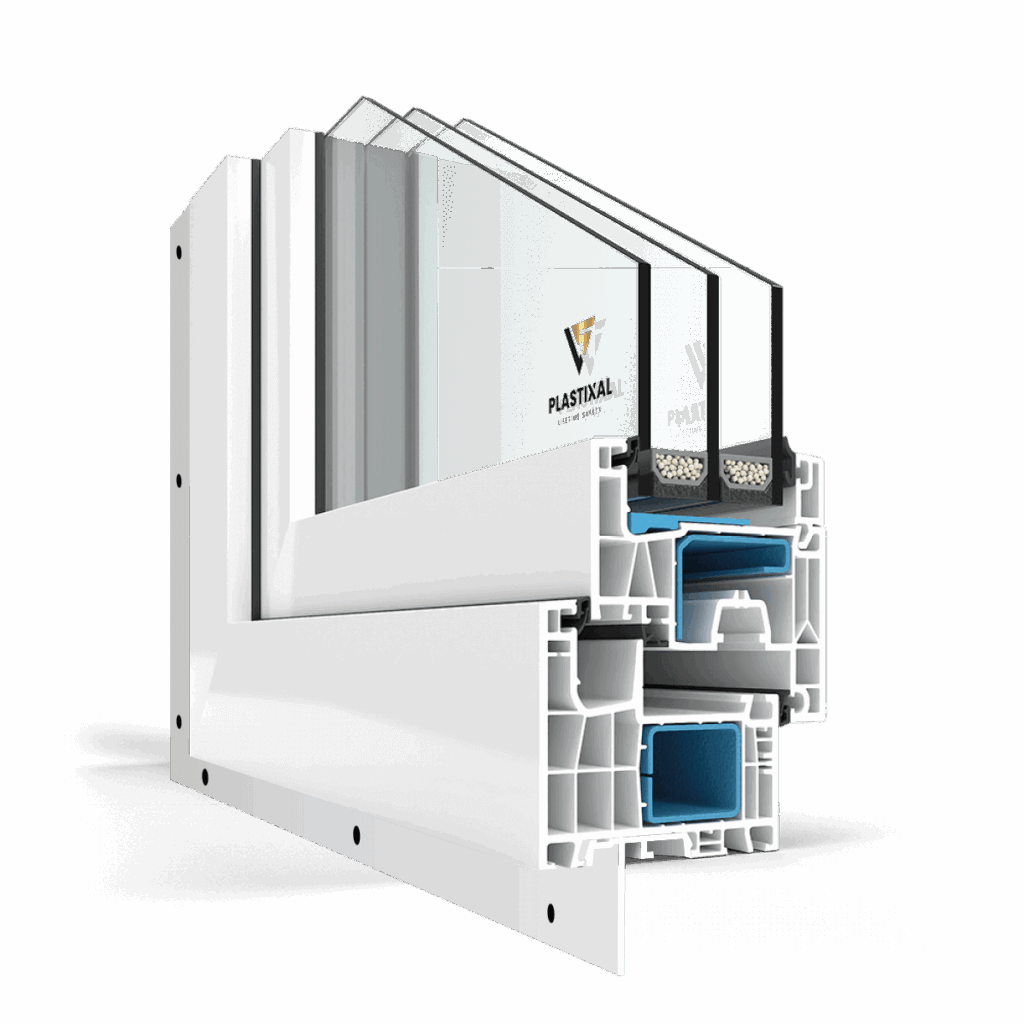

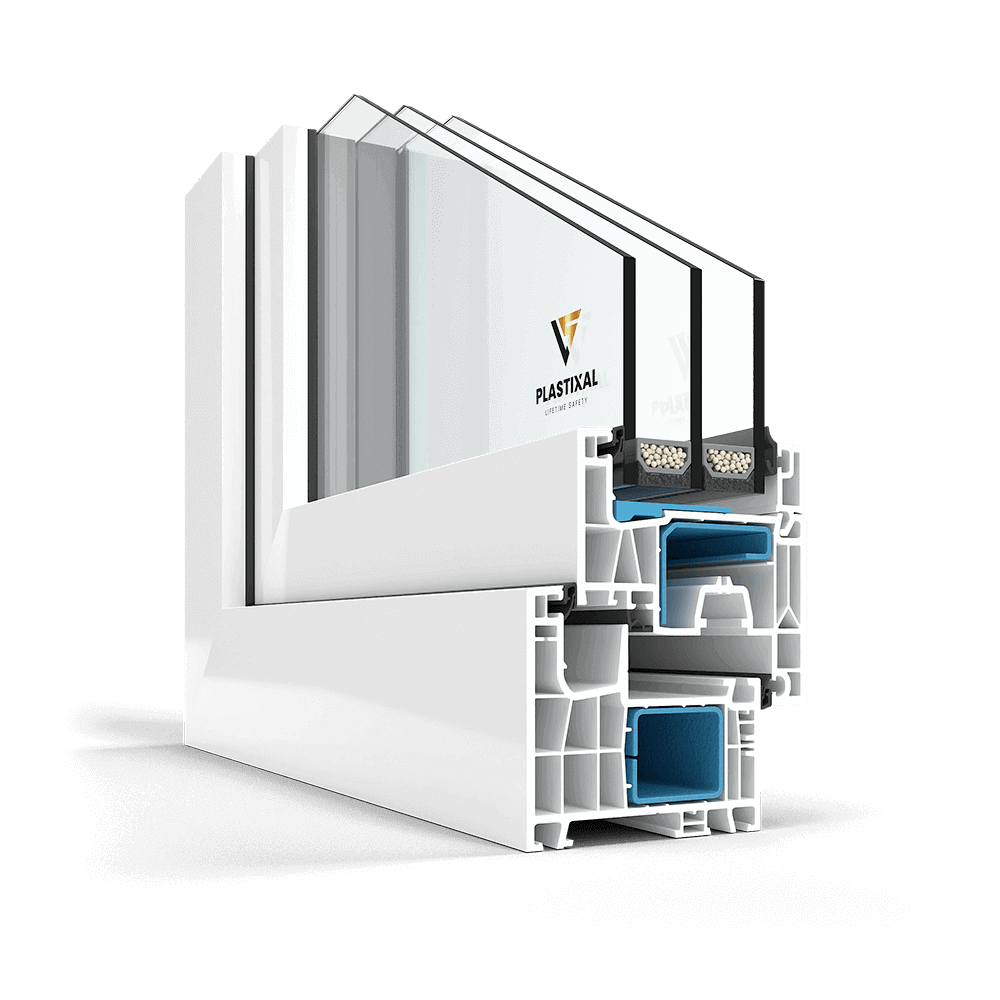

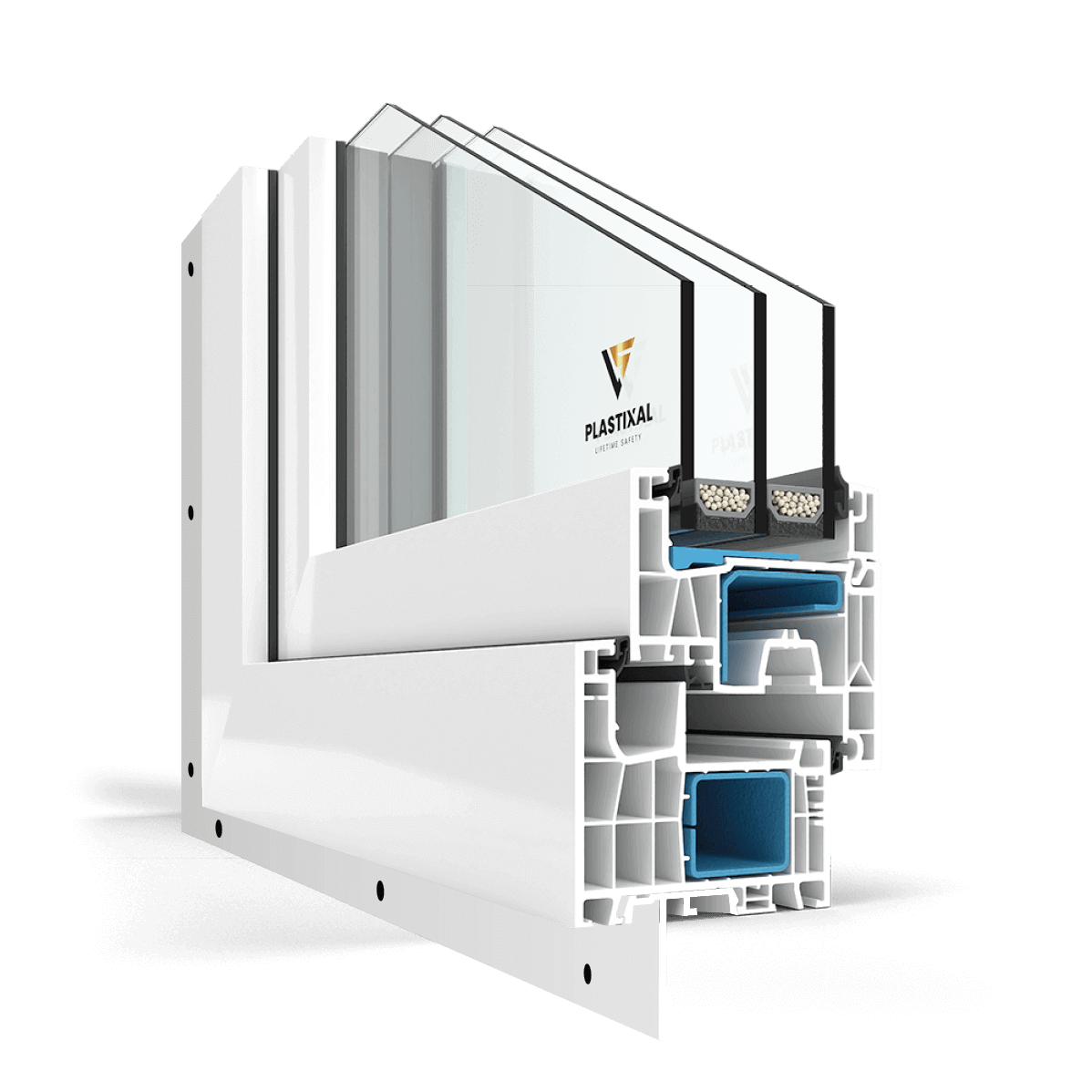

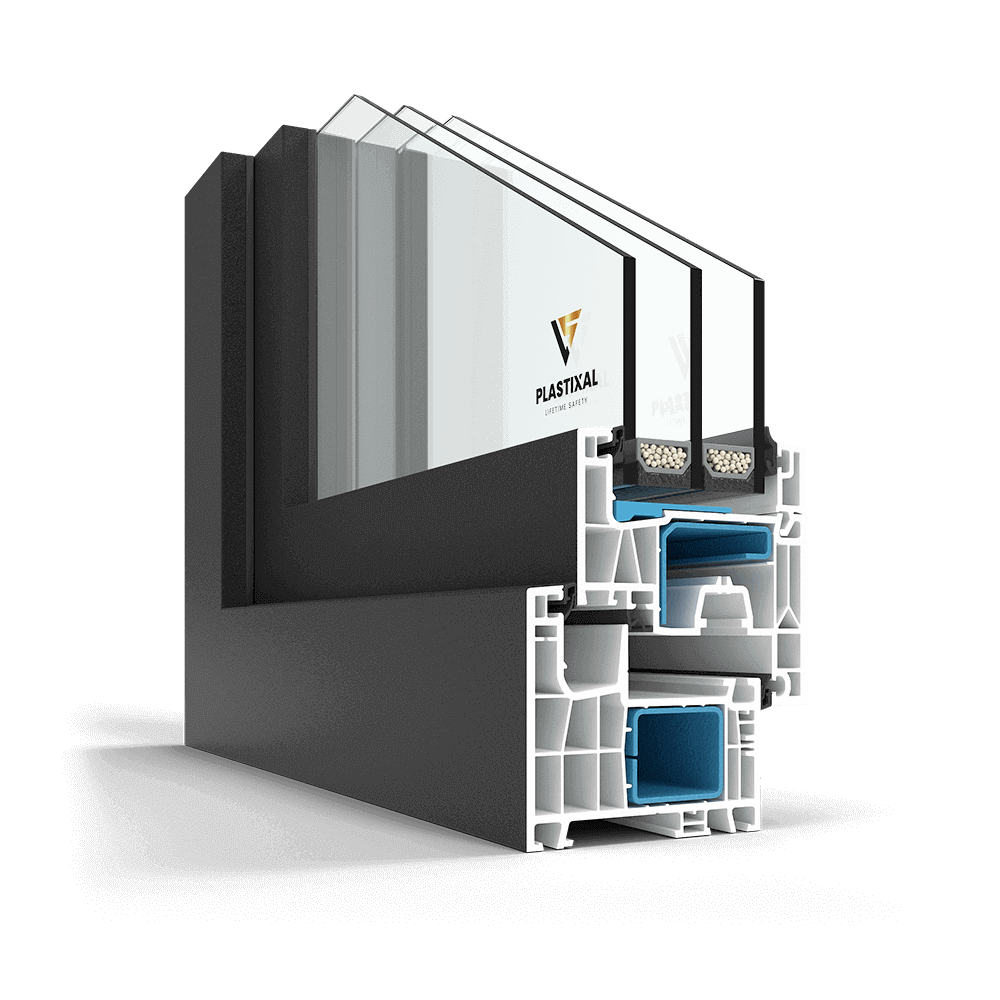

Neo 3.0
New Construction/Replacement
Parameters
U-factor value starting from: 0.17 Btu/h·ft²·°F
Recommended finishes: woodec and aludec
Decorative surfaces
Standard security-enhanced window
Countless variations available
Explore the NEO model with a built-in nail flange, designed exclusively for new construction projects to ensure a smooth, quick, and hassle-free installation process.
Available operation types
Fixed
Casement
Hopper
Tilt & Turn
Certificates for the above windows
The NEO system stands out with its sharp angles and minimalist form, creating a sense of visual lightness. It combines top-level energy efficiency with modern design trends, reflecting the perfect balance of performance and style. Developed with aluplast’s most advanced technologies, every detail and feature has been carefully integrated to bring this vision to life.
Windows from the NEO system embody refined elegance and remarkable lightness. With ultra-slim, uniquely designed profiles—almost half the width of standard aluplast systems—they deliver a striking and unmatched visual effect.
The NEO system stands out as one of the few solutions on the market equipped with a classic center gasket design. It features “Safetec Inside,” an advanced extruded middle gasket that bonds seamlessly with the third inner seal. This innovation strengthens sealing, boosts thermal and acoustic insulation, and enhances security by effectively preventing access to the fittings.
Colors
While wall colors, furnishings, and décor define the atmosphere of a home, windows play an equally important role by shaping the design and enhancing the functionality of each room.
Aludec
The premium decorative finishes stand out with their ultra-fine matte-sandy texture, evoking the sophisticated look of powder-coated aluminum.
Woodec
The innovative woodec finish faithfully reflects the natural beauty and unique character of real wood, while offering all the practical benefits of modern plastic windows.
Other

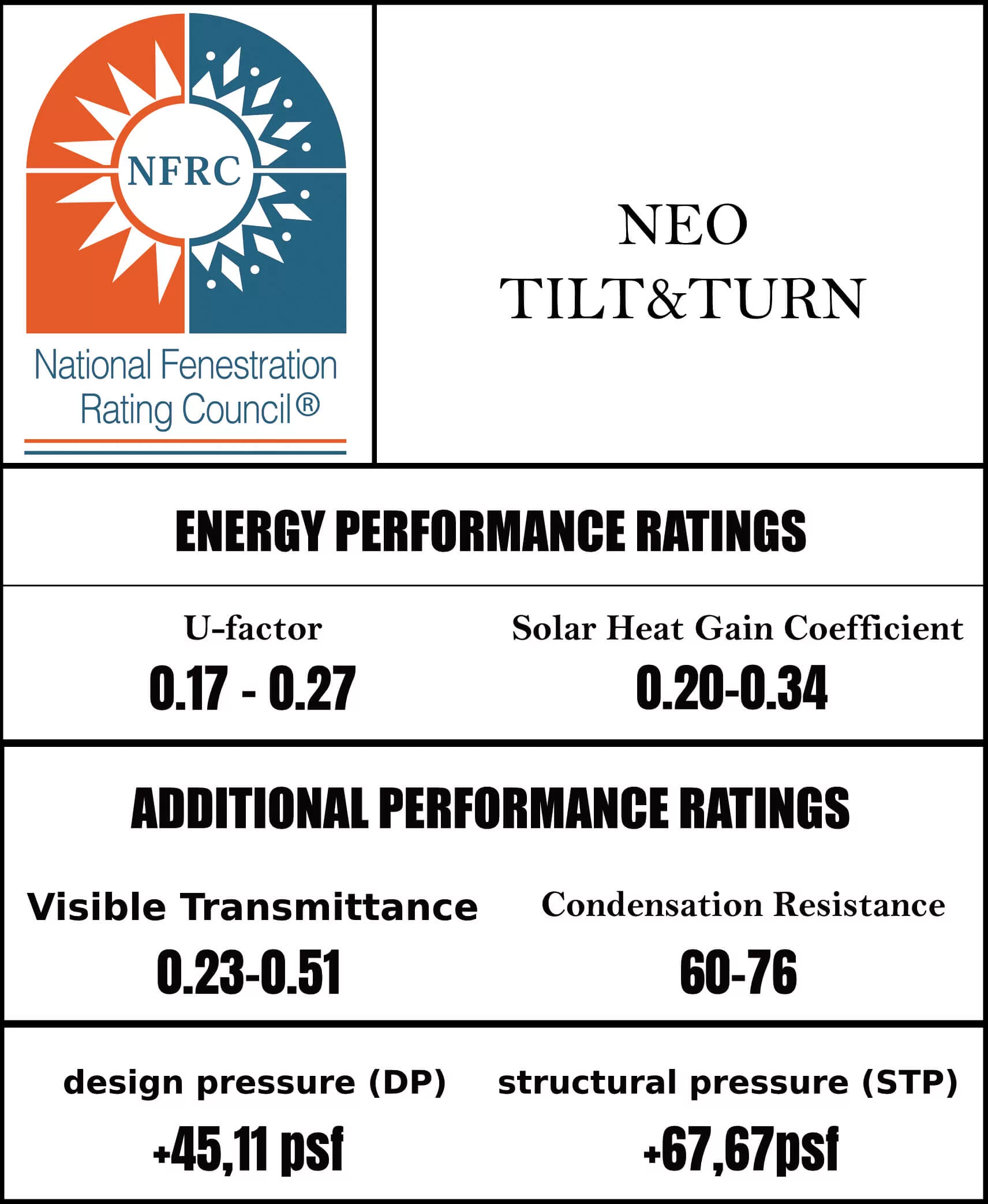

Performance
System | Design Pressure (DP) | Structural Pressure (STP) | U-Factor | SHGC (Solar Heat Gain Coefficient) | Visible Transmittance | Condensation Resistance |
|---|---|---|---|---|---|---|
| NEO / NEO TILT&TURN | +45.11psf | +67.67psf | 0.17 – 0.27 | 0.20-0.34 | 0.23-0.51 | 60-76 |

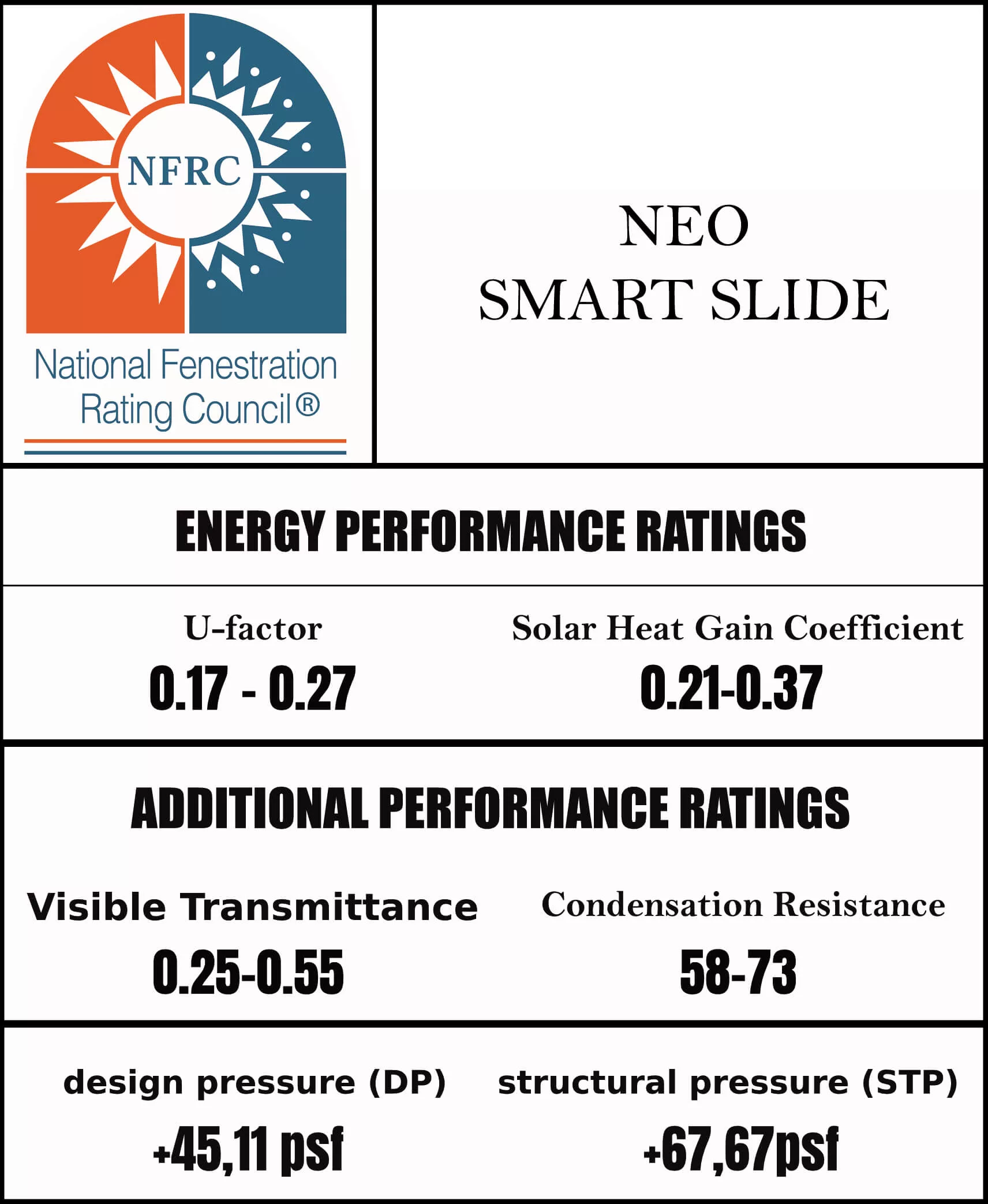

| NEO Smart Slide | +45.11psf | +67.67psf | 0.17 – 0.27 | 0.21-0.37 | 0.25-0.55 | 58-73 |
| NEO fixed window | +45.11psf | +67.67psf | 0.15 – 0.26 | 0.22-0.37 | 0.27-0.59 | 62-77 |
Freedom of Choice
A central design goal of the NEO series was to ensure full compatibility across profiles. This approach allows different geometries to be combined with ease while minimizing the number of profiles required, creating a broad spectrum of window design possibilities.
With the integration of “Multifalz” technology, every system benefits from multifunctional profiles. A single profile section can be configured with traditional steel reinforcement, a steel-free option, or even a hybrid solution—perfect for unconventional dimensions. Additionally, the use of bonding-inside technology expands the range of technical solutions, offering greater flexibility for diverse applications and requirements.
Do You Want to Discover if Our Partnership Terms Align with Your Business Needs?
Simple Structures Minimalist Design
NEO offers a highly appealing design choice for those who value timeless elegance. Defined by its clean, symmetrical cubist form, the system reflects simplicity, harmony, and balance in architectural design.
Sleek, well-defined angles give the NEO system a strong architectural character while preserving a sense of visual lightness.
- Available in two distinctive design variants:
- A minimalist, classic non-flush option
- A modern flush version with slim sightlines, comparable to aluminum windows
The system’s elegance and refined lightness are achieved through its narrow, striking overlaps—nearly half the width of those in other aluplast solutions.
Both the interior and exterior maintain slim, clean lines thanks to a newly developed range of glazing beads with sharp, straight contours.
Design meets technology
OPTIMAL THERMAL INSULATION
The NEO system introduces a modern concept by replacing traditional steel reinforcements, which previously reduced thermal efficiency. Through advanced alternatives, it delivers outstanding thermal insulation performance.
COMFORT OF USE FOR MANY YEARS
The permanent bond between the glass and the sash significantly reduces the risk of warping, bending, or sagging. As a result, the sash remains durable and fully functional for years, eliminating the need for ongoing adjustments.
BETTER PROTECTION AGAINST BURGLARY
By permanently bonding the glazing unit to the profile, a strong and continuous seal is formed around the entire perimeter. This adhesive-filled connection makes it extremely difficult to remove the glass from the sash, providing a higher level of resistance against break-ins.
